TP-LINK TL-WA7210N 2.4GHz 150 Mbps High Power Outdoor Wireless Access Point Item # 140221

 |

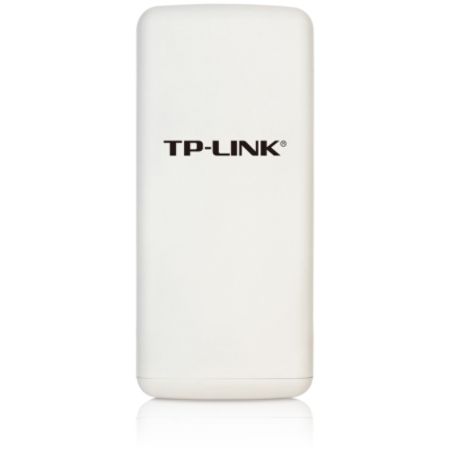

TP-LINK TL-WA7210N 2.4GHz 150 Mbps High Power Outdoor Wireless Access Point
$ 86 .39 / each $86.39
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    TP-LINK High Power Wireless Access Point TL-WA7210N is dedicated to WISP CPE solutions and long distance wireless network solutions. It features up to 500 mw wireless transmission power and has a built-in 12dBi dual-polarized antenna which provides an efficient way to pick up and maintains a stable signal for a wireless network connection ranging multiple kilometers.

    Back To Top

    Product Details

    Item # 140221
    Manufacturer # TB6412
    power source AC adapter; PoE
    Wireless Transmission Speed 150 Mbit/s
    Wireless Security MAC Address Filtering; 64/128/152-bit WEP; WPA; WPA2; WPA-PSK; WPA2-PSK; AES; TKIP
    HDMI No
    Ethernet Port Yes
    Gigabit Ethernet Port No
    height 3.3 in
    System Requirements Operating Systems:Windows 98SE; Windows NT; Windows 2000; Windows XP; Windows Vista; Windows 7; Windows 8; Mac OS; NetWare; UNIX; Linux
    Number of Network (RJ-45) Ports 1
    Features Weather Proof
    antenna type Directional Antenna
    Serial Port No
    PoE (RJ-45) Port No
    width 10.4 in
    10Gigabit Ethernet Port No
    depth 4.7 in
    Product Name 2.4GHz 150Mbps Outdoor Wireless Access Point
    Antenna Gain 12 dBi
    manufacturer TP-LINK Technologies Co., Ltd
    Antenna Connector RP-SMA Connector
    VGA No
    Audio Line Out No
    Powerline No
    brand name TP-LINK
    Wireless LAN Standard IEEE 802.11n
    USB No
    UNII Band No
    Input Voltage 12 V DC
    Power Over Ethernet (PoE) Supported PoE
    Network (RJ-11) No
    Management Port No
    ISM Maximum Frequency 2.48 GHz
    ISM Band Yes
    ISM Minimum Frequency 2.40 GHz
    model name TL-WA7210N
    Fast Ethernet Port Yes
    Show More ▾
    Back To Top

      Customer Reviews

      Back To Top

      From the Manufacturer|Powered by Webcollage

      Thank You Is the information in this section helpful? Yes / No

      Overview

      • What This Product Does

        The TP-LINK 2.4GHz 150Mbps Outdoor Wireless Access Point TL-WA7210N is dedicated to WISP CPE solutions and long distance wireless network solutions. It features up to 500mw wireless transmission power and has a built-in 12dBi dual-polarized antenna which provides you with an efficient way to pick up and maintain a stable signal for a wireless network connection ranging multiple kilometers or miles.

      • High Transmission Capability

        With up to 500mw wireless transmission power and a 12dBi dual-polarized high gain antenna, the TL-WA7210N can produce and pick up a powerful and stable signal for a wireless connection ranging multiple kilometers or miles.

      • Professional Outdoor Design

        The TL-WA7210N features a weatherproof enclosure and special protection against ESD and lightning. It also supports passive Power over Ethernet (PoE), making it a versatile outdoor networking solution.

      • Multiple Applications

        The TL-WA7210N is dedicated to WISP CPE solutions and long distance wireless network solutions, especially for WISP services where the device will behave as a client of the Wireless Internet Service Provider (WISP). Two TL-WA7210Ns can create a point to point link for a long-distance wireless connection. Plus, the TL-WA7210N can create point to multi-point links for wireless coverage servicing multiple locations.

      • Intelligent Management Tools

        Tool 1: Antenna Alignment
        Users can use the antenna alignment tool to adjust the direction of their APs using a live signal strength meter to judge which direction is best. This makes setup that much simpler.

        Tool 2: Distance Setting
        With the TL-WA7210N ACK timeout tool, users are able to adjust the distance between two APs. This allows users to set a specific distance in order to establish the most robust wireless connection possible.

        Tool 3: Ping Watch Dog
        Ping Watch Dog enables users to maintain the ping command to check the quality of the wireless link and also reboot the remote AP if the wireless signal worsens
        or disconnects.
      See More:

      Product Images

      {"images":[{"assetWrapper":"image-gallery","runtimeSrc":{"height":1280,"width":517,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/bc046415-d563-48bf-86de-01352605fe14.jpg.web.v1.jpg"},"isAdaCompliant":false,"src":{"height":1280,"width":517,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/bc046415-d563-48bf-86de-01352605fe14.jpg"},"sources":[{"height":1280,"width":517,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/bc046415-d563-48bf-86de-01352605fe14.jpg.w960.jpg","profile":"W960"},{"height":1188,"width":480,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/bc046415-d563-48bf-86de-01352605fe14.jpg.w480.jpg","profile":"W480"},{"height":594,"width":240,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/bc046415-d563-48bf-86de-01352605fe14.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":1280,"width":499,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/d3f0fdad-79a7-48a0-86f7-756ba8df2862.jpg.web.v1.jpg"},"isAdaCompliant":false,"src":{"height":1280,"width":499,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/d3f0fdad-79a7-48a0-86f7-756ba8df2862.jpg"},"sources":[{"height":1280,"width":499,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/d3f0fdad-79a7-48a0-86f7-756ba8df2862.jpg.w960.jpg","profile":"W960"},{"height":1231,"width":480,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/d3f0fdad-79a7-48a0-86f7-756ba8df2862.jpg.w480.jpg","profile":"W480"},{"height":615,"width":240,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/d3f0fdad-79a7-48a0-86f7-756ba8df2862.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":1280,"width":709,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/a3bd1d21-52af-441a-9e84-6973e6adf4f6.jpg.web.v1.jpg"},"isAdaCompliant":false,"src":{"height":1280,"width":709,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/a3bd1d21-52af-441a-9e84-6973e6adf4f6.jpg"},"sources":[{"height":1280,"width":709,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/a3bd1d21-52af-441a-9e84-6973e6adf4f6.jpg.w960.jpg","profile":"W960"},{"height":866,"width":480,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/a3bd1d21-52af-441a-9e84-6973e6adf4f6.jpg.w480.jpg","profile":"W480"},{"height":433,"width":240,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/a3bd1d21-52af-441a-9e84-6973e6adf4f6.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":1280,"width":332,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/b40880af-590a-4dfd-b237-aeeb0645a62d.jpg.web.v1.jpg"},"isAdaCompliant":false,"src":{"height":1280,"width":332,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/b40880af-590a-4dfd-b237-aeeb0645a62d.jpg"},"sources":[{"height":1280,"width":332,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/b40880af-590a-4dfd-b237-aeeb0645a62d.jpg.w960.jpg","profile":"W960"},{"height":1280,"width":332,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/b40880af-590a-4dfd-b237-aeeb0645a62d.jpg.w480.jpg","profile":"W480"},{"height":925,"width":240,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/b40880af-590a-4dfd-b237-aeeb0645a62d.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":696,"width":960,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/1170fd85-18b8-48ac-8a89-37d9c0fe5151.jpg.web.v1.960.jpg"},"isAdaCompliant":false,"src":{"height":696,"width":960,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/1170fd85-18b8-48ac-8a89-37d9c0fe5151.jpg"},"sources":[{"height":696,"width":960,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/1170fd85-18b8-48ac-8a89-37d9c0fe5151.jpg.w960.jpg","profile":"W960"},{"height":348,"width":480,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/1170fd85-18b8-48ac-8a89-37d9c0fe5151.jpg.w480.jpg","profile":"W480"},{"height":174,"width":240,"src":"/_cp/products/1377735712612/tab-641ff4fb-cef3-48ca-b7df-28adbf9c204e/1170fd85-18b8-48ac-8a89-37d9c0fe5151.jpg.w240.jpg","profile":"W240"}]}]}

      Features

      • 12dBi dual-polarized directional antenna boosts wireless range
      • Dedicated power amplifier and low noise amplifier improve radio performance
      • Up to 500mw power for longer distance transmission
      • Weatherproof enclosure, 4KV lightning protection, grounding terminal integrated and 15KV ESD protection
      • Complies with IEEE 802.11b/g/n, wireless speed up to 150Mbps
      • Supports AP Client Router (WISP Client), AP Router and AP operation mode
      • Up to 60 meters (200 feet) of flexible deployment with included passive Power over Ethernet Injector
      • Provides external RP-SMA connector for higher gain antenna upgrade
      • Supports Antenna Alignment , Distance Setting, Ping Watch Dog and Wireless Speed Test

      Package Contents

      • TL-WA7210N
      • Power Supply Unit
      • PoE Injector
      • Pole Mounting Kits
      • Resource CD
      • Quick Installation Guide

      Specifications

      HARDWARE FEATURES
      Interface1 10/100Mbps Auto-Sensing RJ45 Port(Auto MDI/MDIX, PoE)
      1 External Reverse SMA Connector
      1 Grounding Terminal
      ButtonReset Button
      External Power Supply12VDC / 1.0A, Passvie Power over Ethernet (Supported Ethernet Cable Length > 60 meters)
      Wireless StandardsIEEE 802.11n,IEEE 802.11g, IEEE 802.11b
      Antenna12dBi Dual-Polarized Directional Antenna
      Dimensions ( W x D x H )10.4 × 4.7 × 3.2 in. (265x120x83mm)
      Antenna BeamwidthHorizontal: 60° Vertical: 30°
      Protection15KV ESD Protection
      4000V Lightning Protection
      Grounding Terminal Integrated



      WIRELESS FEATURES
      Frequency2.4-2.4835GHz
      Signal Rate11n: Up to 150Mbps(dynamic)
      11g: Up to 54Mbps(dynamic)
      11b: Up to 11Mbps(dynamic)
      Reception Sensitivity802.11n
      150M: -76dBm
      121.5M: -78dBm
      108M: -80dBm
      81M: -84dBm
      54M:-87dBm
      40.5M:-91dBm
      27M:-92dBm
      13.5M:-95dBm
      802.11g
      54M: -79dBm
      48M: -81dBm
      36M: -85dBm
      12M: -92dBm
      6M:-95dBm
      Wireless ModesAP Router Mode
      AP Client Router Mode (WISP Client)
      AP / Client / Bridge / Repeater Mode
      Wireless FunctionsWDS Bridge, Wireless Statistics
      Wireless SecuritySSID Enable/Disable
      MAC Address Filter
      64/128/152-bit WEP Encryption, WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption
      Advanced FunctionsProvides 4-level signal LED indicator
      Transmission Power<20dBm (EIRP, For countries using CE Standards)
      <27dBm (Peak Output Power, For countries using FCC Standards)



      OTHERS
      CertificationCE, FCC, RoHS
      Package ContentsTL-WA7210N
      Power Supply Unit
      PoE Injector
      Pole Mounting Kits
      Resource CD
      Quick Installation Guide
      System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC OS, NetWare, UNIX or Linux.
      EnvironmentOperating Temperature: -30°C~70°C (-22℉~158℉)
      Storage Temperature: -40℃~70℃ (-40℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~95% non-condensing
      Warranty2 years limited warranty. Advanced replacement service is available.
